Trail Tech Vapor Kit, Conventional Forks, 12mm Cylinder Head Temp

752-116

The Vapor speedometer tachometer is a popular choice for both on and off-road enthusiasts. Vapor's large digital tachometer bar graph is easy to read. At a small size of 4.2 x 2.3 inches, Vapor is perfect for all types of riding like cross country, trail riding or at the track. The main features include a large RPM graph and speed readout, with much more data built in. At the top, programmable LED lights blink when it’s time to shift gears or during an over-temp event.

Features include a large RPM graph and speed readout, programmable LED lights that blink when it’s time to shift gears or during an over-temp event
Vapor displays speed, teach, engine temperature, ambient temperature, resettable distance, clock, ride time, and odometer
Customize and fine tune Vapor for tire size, teach sensitivity, and trigger temps for the temp and teach warning lights
Vapor can operate on regulated AC or 12V DC electrical systems, meaning it works on almost everything
Use the built-in stop watch for race training, or resettable trip distance for endure courses
An indicator dashboard accessory (022-PDA) is available if indicators are required, providing space for 4 indicator lights such as neutral and high beam.
Vapor’s small size and ability to mount to any vehicle makes it a clean choice for most applications.

Warranty:	1 Year Warranty
California Residents:	WARNING

THIS TRAIL TECH VAPOR KIT INCLUDES:

	HEAD UNIT: Vapor Tachometer Device
	BAR MOUNT: Mounting kit for 7/8" & 1-1/8" Bars

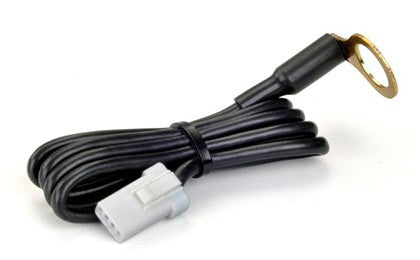

	CHT TEMPERATURE SENSOR: 12mm Cylinder Head Temperature
	WHEEL SPEED SENSOR: Generic Inverted Forks
	MAGNET KIT: Multi-Bolt Selection
	TACH SENSOR: 70in, Senses Engine RPM
	POWER WIRE: 48", Connect to Vehicle Battery
	BONUS SWAG: Random Keychain or Sticker

FUNCTION	DISPLAY	RANGE
Speed	SPD	4-399 KPH/MPH
Tachometer	Graphical	0-12000 RPM
Temperature	ENG	0-260°C 32-499°F
Distance	DST	0-19999 KM or M
Accum. Run Time	CLOCK	0-9999 Hours
Odometer	ODO	0-999999 KM or M

POWER	DESCRIPTION
External Power Input	9.0-400 VAC/VDC (No polarity requirements.)
Internal Battery	3V CR2032
Battery Life	1 Year
Power Wire	Red/Black 20g Wire

FEATURES
Real-Time RPM Bar Graph	0-12,000 RPMs
Numeric RPM Readout	0-19,999 RPMs
Temperature Sensor	Ambient Temperature Engine Temperature
Backlight	LED Group
Screen	78.75 x 28.6mm (3.1 x 1.13”)
Physical Dimensions	106.93x59.46x23.7mm WxHxD (4.21x2.34x0.93” WxHxD)
Physical Weight	3.9 oz (110 grams)
Operation Temperature	0-60°C (32-140°F)
Storage Temperature	-20-80°C (0-175°F)
Engine Enviroment (Temp or Tach)	Amber/Red LED Alerts
