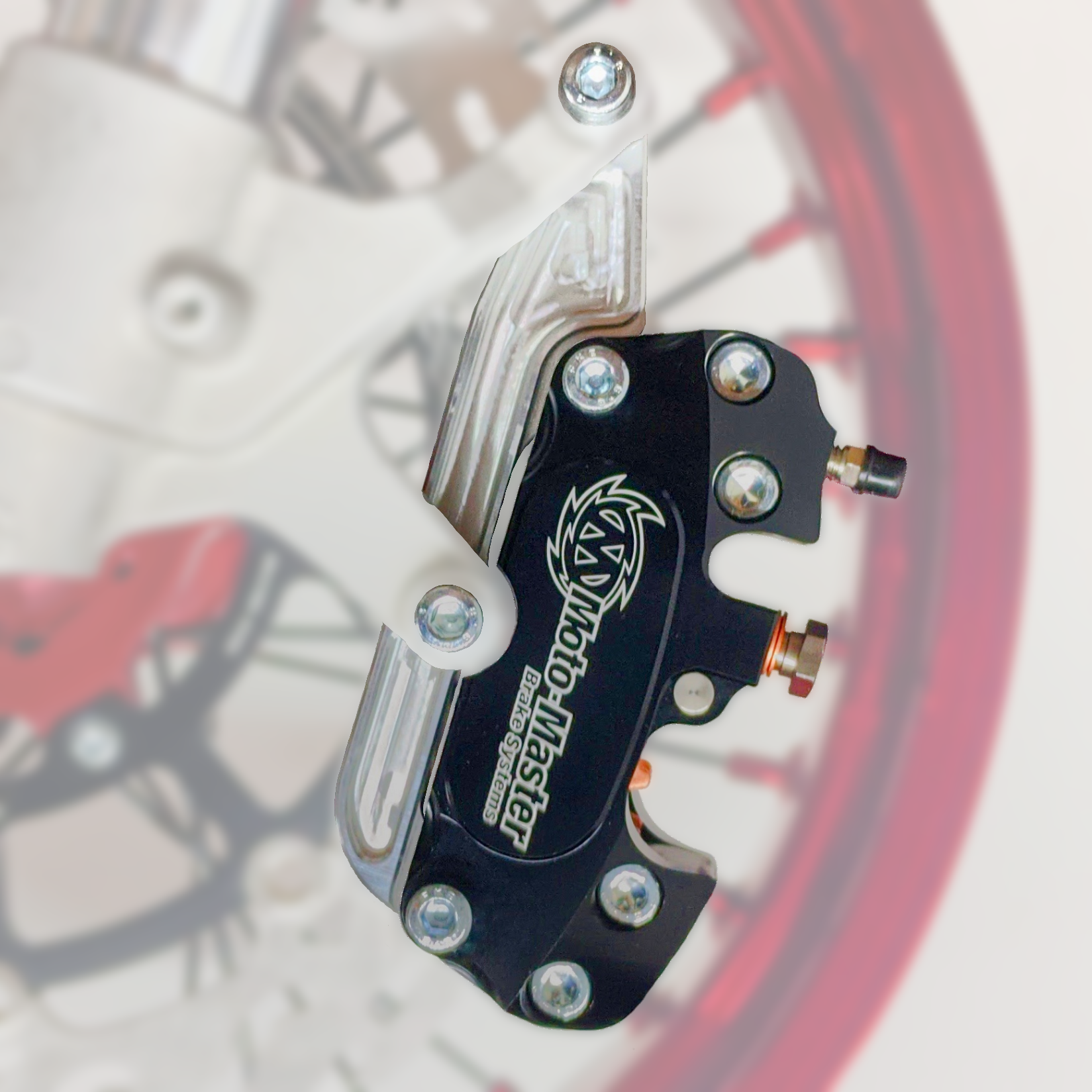

Moto-Master 320mm Supermoto Racing Caliper Kit

The Moto-Master Supermoto Racing Caliper is built to withstand any thermal and physical stress a caliper will endure when used at top level Supermoto racing. Its rigid design with oversize 4-piston configuration and racing compound brake pads provide all the stopping power you need with a gentle pull of your fingertips.

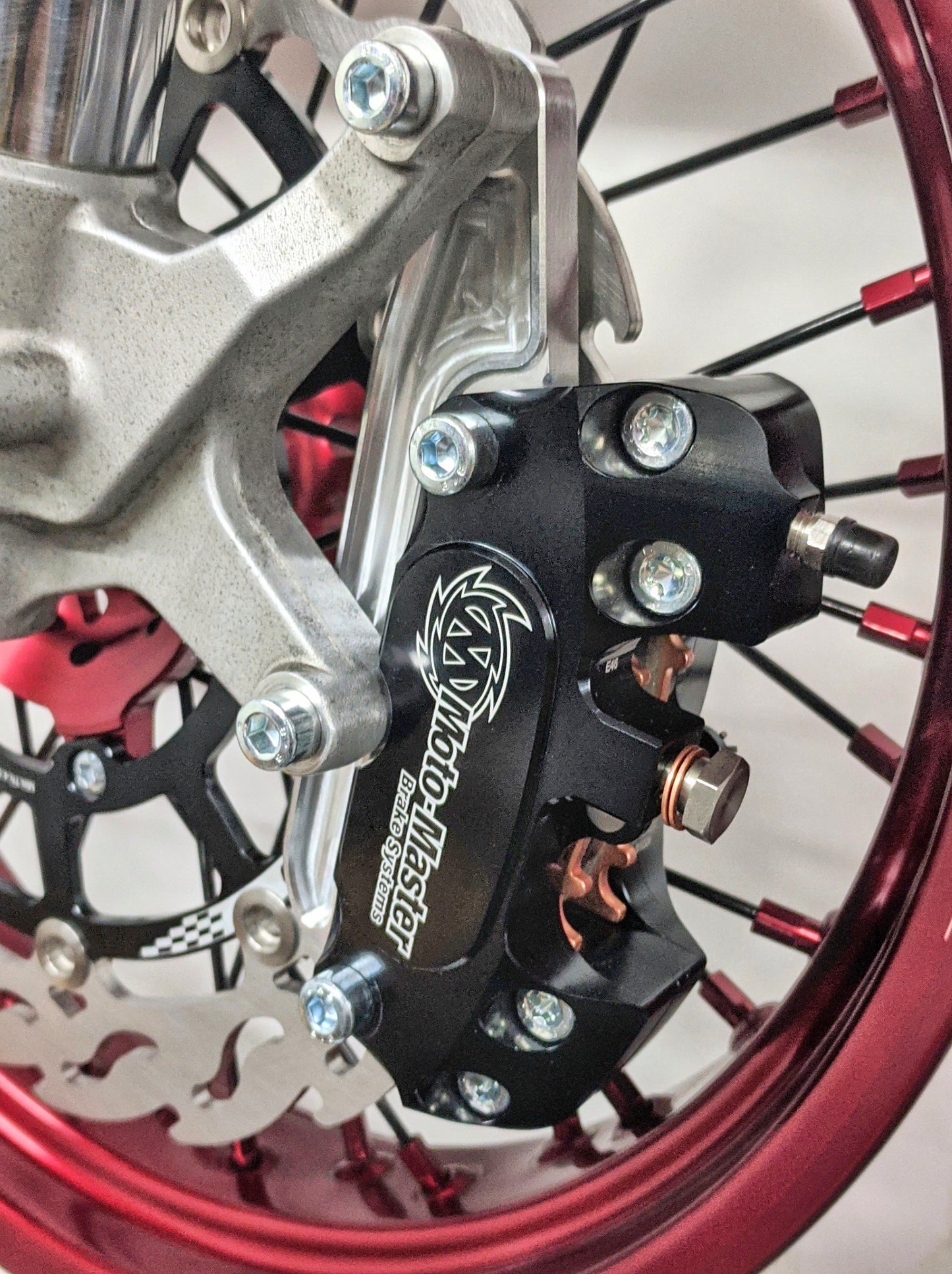

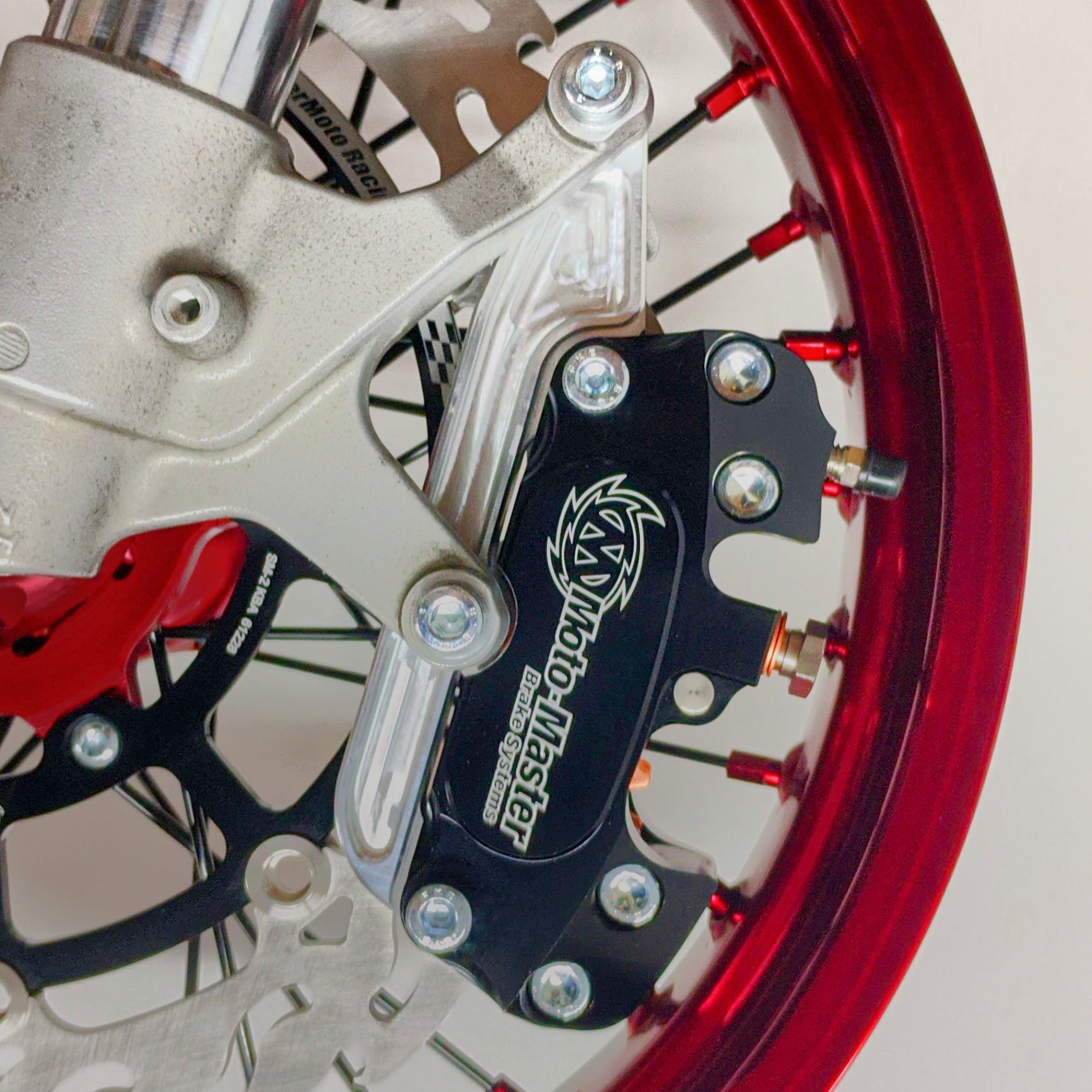

TMR offers this caliper kit specifically for the DR-Z 400SM and the unique caliper mount of the factory supermoto fork bottom. This caliper requires a 320mm rotor that is at least 5mm thick. It does NOT work with the stock SM rotor (too small and too thin), and it does not work with the DRZ E, K, or S models.

• Caliper and bracket are CNC machined out of billet aircraft aluminum.
• The Moto-Master Racing Caliper is specifically designed for use with the Supermoto Racing Rotor (Not compatible with Supermoto Street rotor).
• Can be paired with your bike’s OEM master cylinder, or you can improve the power and feel of the brake system even more by adding the Moto-Master 12mm Radial Master Cylinder and a stainless braided brake line.

• REQUIRES Ø320mm rotor, at least 5mm thick.

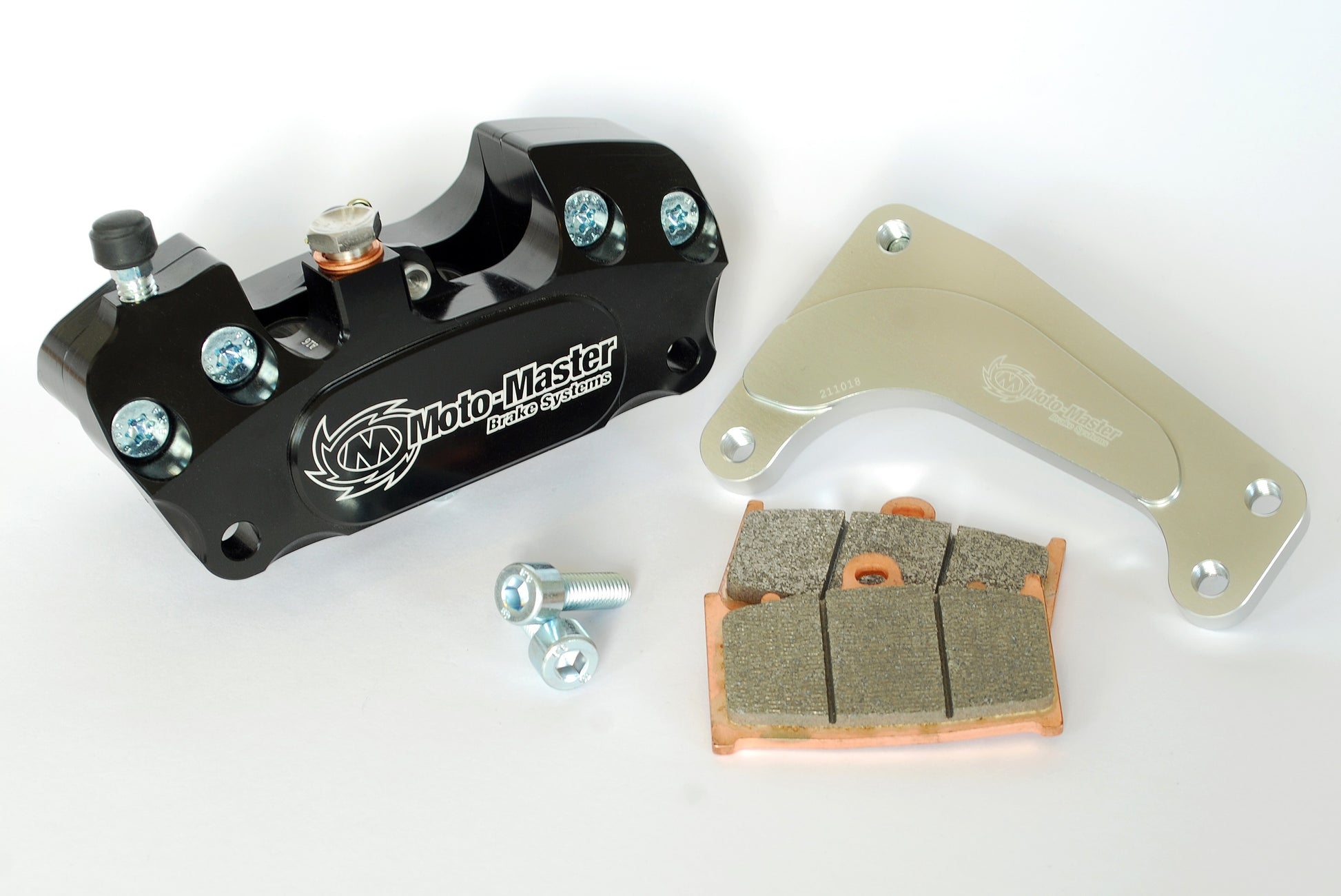

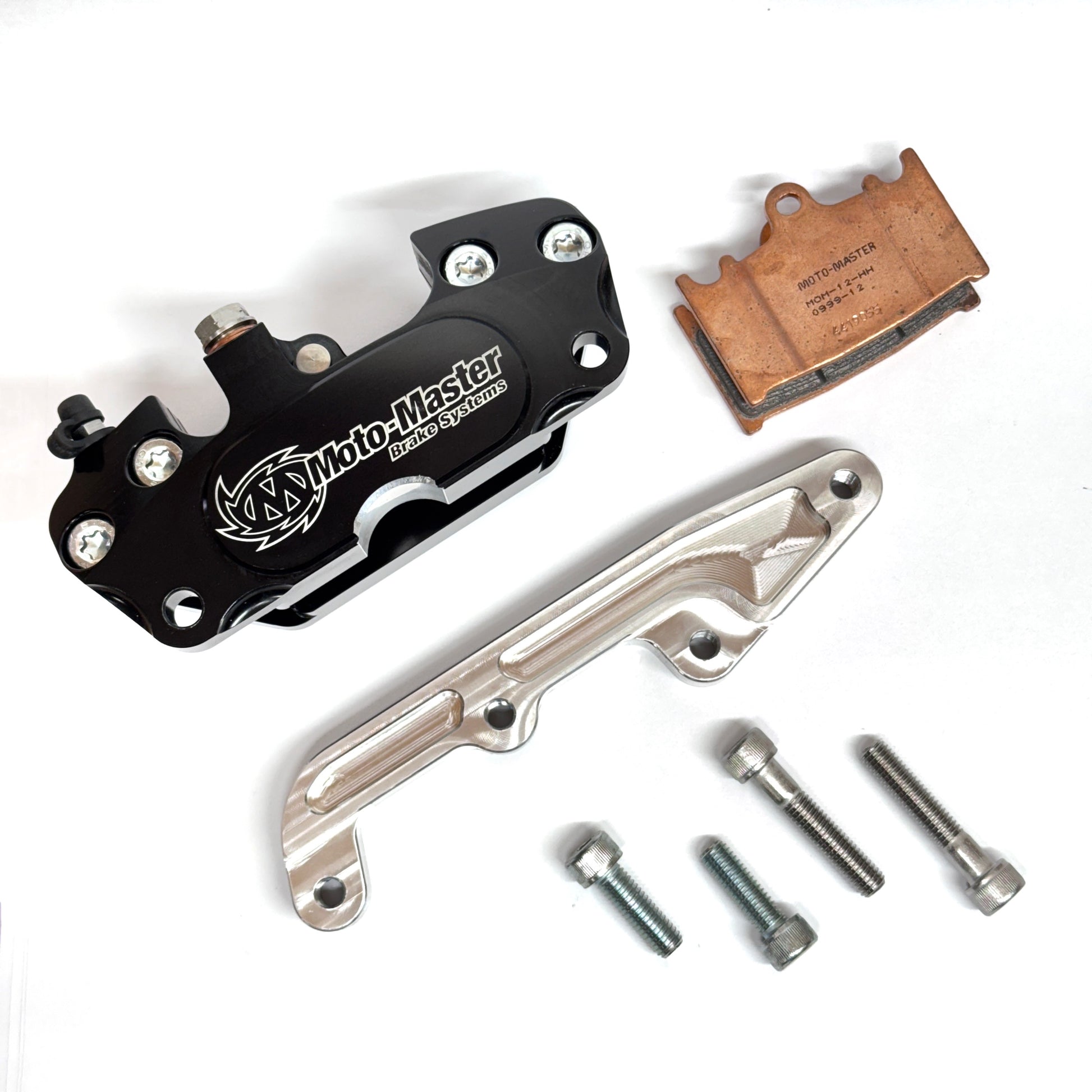

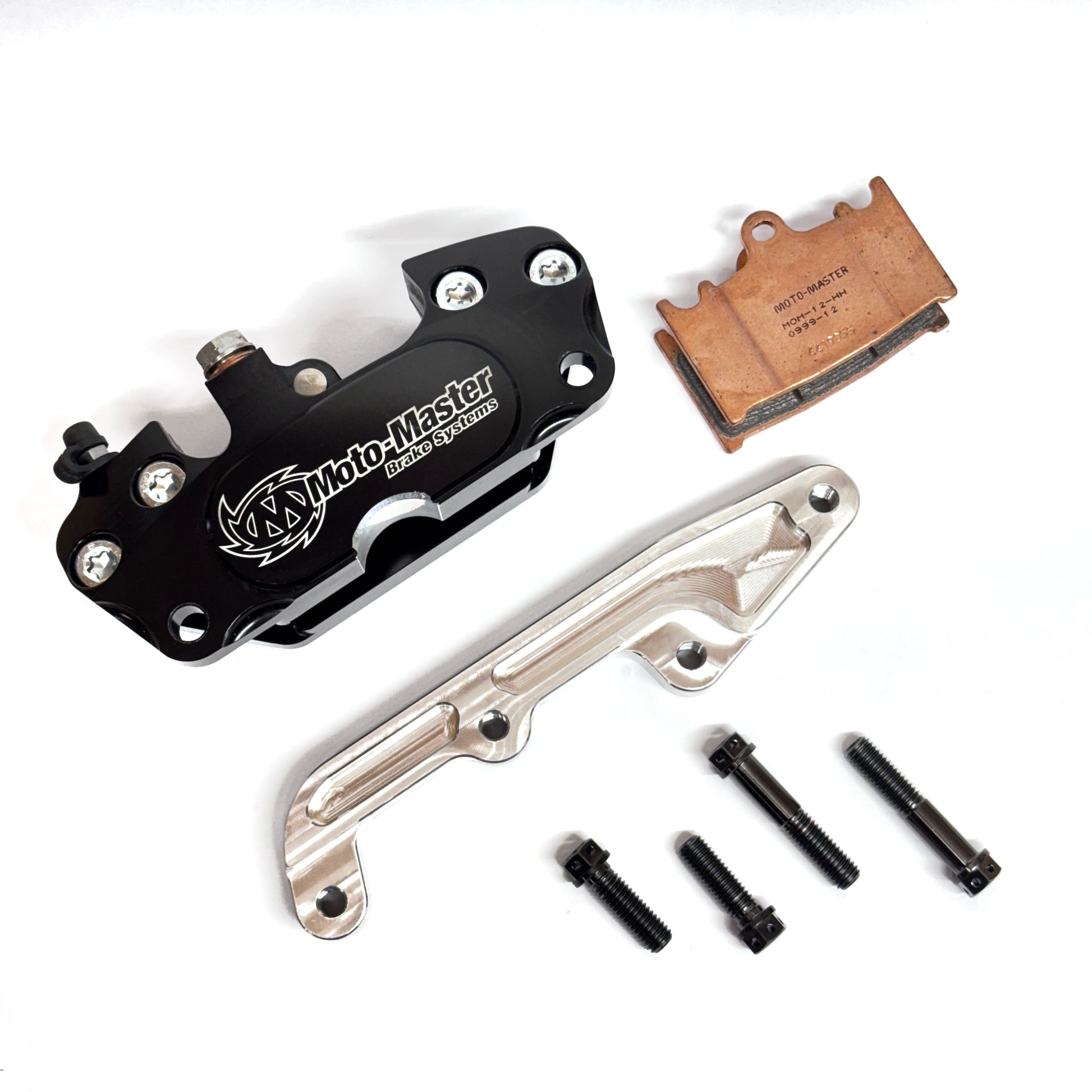

INCLUDES:

• Specially modified 4-piston axial caliper
• SinterPro RacingGP brake pads
• Caliper adapter bracket
• Mounting bolts
